I. Product Overview

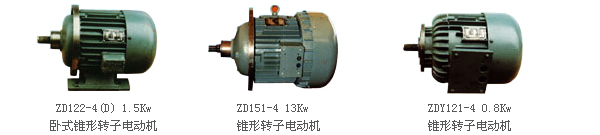

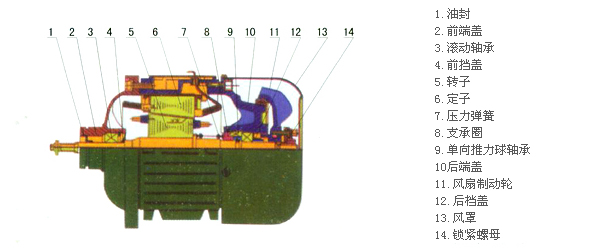

The motor is small in size, light in weight, beautiful in structure and appearance. It can not only be used in CD1 and MD1 electric hoists, but also can be widely used in electroplating, construction, printing and other mechanical equipment.

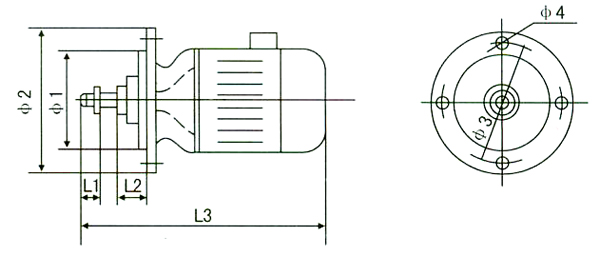

II. Installation and overall size of ZD1 series motor

Model/Item	Power KW	shaft extension spline	L1	L2	L3	Φ1	Φ2	Φ3	Φ4
ZD1 21—4	0.8	6D-20dc4×16dc7×4de4	24	70	316	Φ172	Φ220h8	Φ196	Φ9
ZD1 22—4	1.5	6D-20dc4×16dc7×4de4	24	71	355	Φ174	Φ235h8	Φ196	Φ13.5
ZD1 31—4	3	6D-20dc4×16dc7×4de4	30	109	424	Φ215	Φ290h8	Φ205	Φ13
ZD1 32—4	4.5	6D-28dc4×23dc7×6de4	30	98	437	Φ215	Φ320h8	Φ260	Φ13
ZD1 41—4	7.5	10D-35dc4×28dc7×4de4	35	120	525	Φ260	Φ380h8	Φ286	Φ17
ZD1 51—4	13	10D-40dc4×32dc7×5de4	40	172	670	Φ300	Φ455h8	Φ340	Φ17

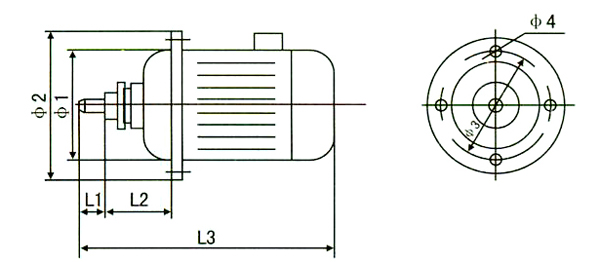

III. Installation and overall size of ZD1 series motor

Model/Item	Power KW	shaft extension spline	L1	L2	L3	Φ1	Φ2	Φ3	Φ4
ZDY111-4	0.2	4D-15dc4×12dc7×4de4	22	15	261	Φ75h7	Φ110	Φ90	Φ7
ZDY112-4	0.4	4D-15dc4×12dc7×4de4	22	15	281	Φ75h7	Φ110	Φ90	Φ7
ZDYA0.8	0.8	6D-20dc4×16dc7×4de4	24	20	315	Φ100h7	Φ140	Φ120	Φ10
ZDYA0.8	0.8	6D-20dc4×16dc7×4de4	24	20	315	Φ130h7	Φ190	Φ165	Φ12
ZDY121-4	0.8	6D-20dc4×16dc7×4de4	24	20	329	Φ100h7	Φ140	Φ120	Φ9
ZDQ0.8	0.8	6D-20dc4×16dc7×4de4	24	70	315	Φ176	Φ220h8	Φ196	Φ10
ZDQ0.8	0.8	6D-20dc4×16dc7×4de4	24	70	315	Φ176h7	Φ220	Φ200	Φ10

1. Product Description

1.1 YZR and YZ series are of the latest design,featuring large overload capacity and high mechanical strength,and especially suitable for driving various types of metallurgical machines and cranes and/or other similar equipments.YZR series is wound-rotor motor and YZ series is cage motor.

1.2 The motors can run normally under following ambient conditions:
(1) Temperature of cooling medium not exceeding 60 (for motors for metallurgical purpose)or 40℃ (for motors for crane purpose)
(2) Elevation not exceeding 1000m
(3) Constant/frequent and noticeable mechanical vibration and shock

1.3 The motors can work normally under following loading conditions:
(1) Starting and reversing frequently
(2) Frequent electric or mechanical braking

1.4 Rated frequency of the motors is 50Hz,and rated voltage is 380V

1.5 Connection:the stator winding is connected in Y for 132kW and below,and G for the rest

1.6 Type Designation

1.7 Output power speed
The range of rated output and synchronous speed for the basic duty type (S,40%)are shown in tablel. (cage motor manufacturing,specifications in thick-line block)Table(2)

1.8 For the YZR series motors,when working with basic duty type,the guaranteed values of the ratio of the maximum torque to the rated torque under rated voltage are given in Table 2.

1.9 For YZ series motors,when working with basic duty type,the guaranteed values of the ratio of the maximum torque and the locked rotor torque to the rated torque under rated voltage are given in table 3.

2. Motor works and technical parameter

2.1 For the motors,rated voltage is 380V and rated frequency is 50Hz.

2.2 The motors are suitable for intermittent periodic loading.Depending on different loadings,there are following duty types:

2.2.1 Intermittent periodic duty type(S3)It is a sequence of identical duty cycles,each including a period of operation at constant load and a rest and de-energized period (see Fig.1). In this duty type,the starting current of each cycle does not significantly affect the temperature rise of motor: every 10 minutes taken as one cycle,i.e.,starting 6 times per hour.

2.2.2 Intermittent periodic duty type with starting(S4) A sequence of identical duty cycles,each including a significant period of starting,a period of operation of constant load and a rest and de-energized period (see Fig.2).Starting times per hour are 150,300 and 600.

2.2.3 Intermittent periodic duty type with electric braking(S5)It is a sequence of identical duty cycles,each consisting of a period of starting,a period of operation at constant load,a quick electric braking period and a rest and de- energized period (see Fig.3).

2.3 When selecting the motors,different kinds of starting and braking states need to be reduced,as per the equivalent heating,into the equivalent starting times,which is then used to determine the rating of motor.Typical reduction example is shown in Table 4.

Reduction method:

Inching (the final speed being not exceeding 25%of rated speed)four times is equivalent to starting once. Electrical braking(being braked to 1/3 rated speed)once is equivalent to 0.8 times a start.

2.4 The basic duty type for the motors is S3-400.See Table 5 for technical data for each duty type.Information on nameplate of motor is generally provided as per basic duty type,and customized information is also possible.It is necessary to consult the manufacturer if the motors need to run in duty types other than S2~S5.

Motor works and technical parameter Table(5-1)

Motor works and technical parameter Table(5-2-1)

Motor works and technical parameter Table (5-2-2)

3. Motor structure

3.1 Insulation class

Motors have two insulation classes,namely,F class and H class.F class is suitable where cooling medium temperature does not exceed 40C,while H class is suitable where cooling medium temperature does not exceed 60C.Motors with either insulation class have identical electric behavior as the motors with the other one do.

3.2 Degree of protection

The degree of protection is IP44 for general-purpose motors and IP54 for metallurgical-purpose motors.

3.3 Cooling method

For frame size 112132,natural cooling,(IC0041),for frame size 160355,built-in fan cooling (ICO141). For frame size 400,external-fan cooling with internal circulating ventilation,(IC0151)

3.4 For construction and mounting arrangements,see Table 6

3.5 Shaft extension is available upon user's sizes or requirements.

3.6 Type of drive:Motors are designed for coupling or spur gear drive.When spur gear drive is used,the pitch diameter of the pinion should not be less than twice of that of the shaft extension

3.7 The Junction box for the stator is fitted on the top of the frame,and it is possible to make connection on either side of the frame.For the rotor,it is possible to make connection on either side of the cover.

3.8 Brush type is J201,and its specification is given in Table 7
